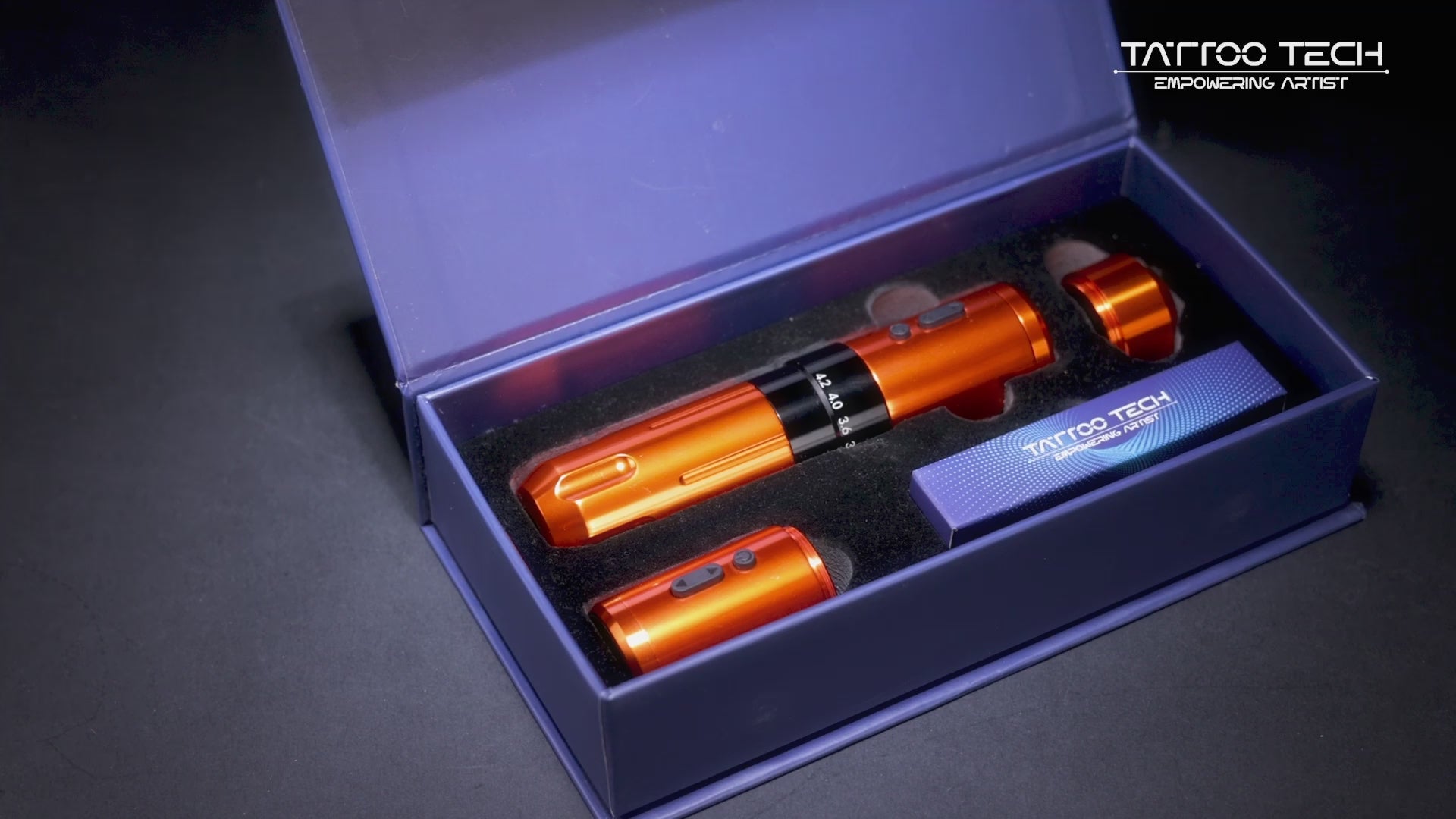

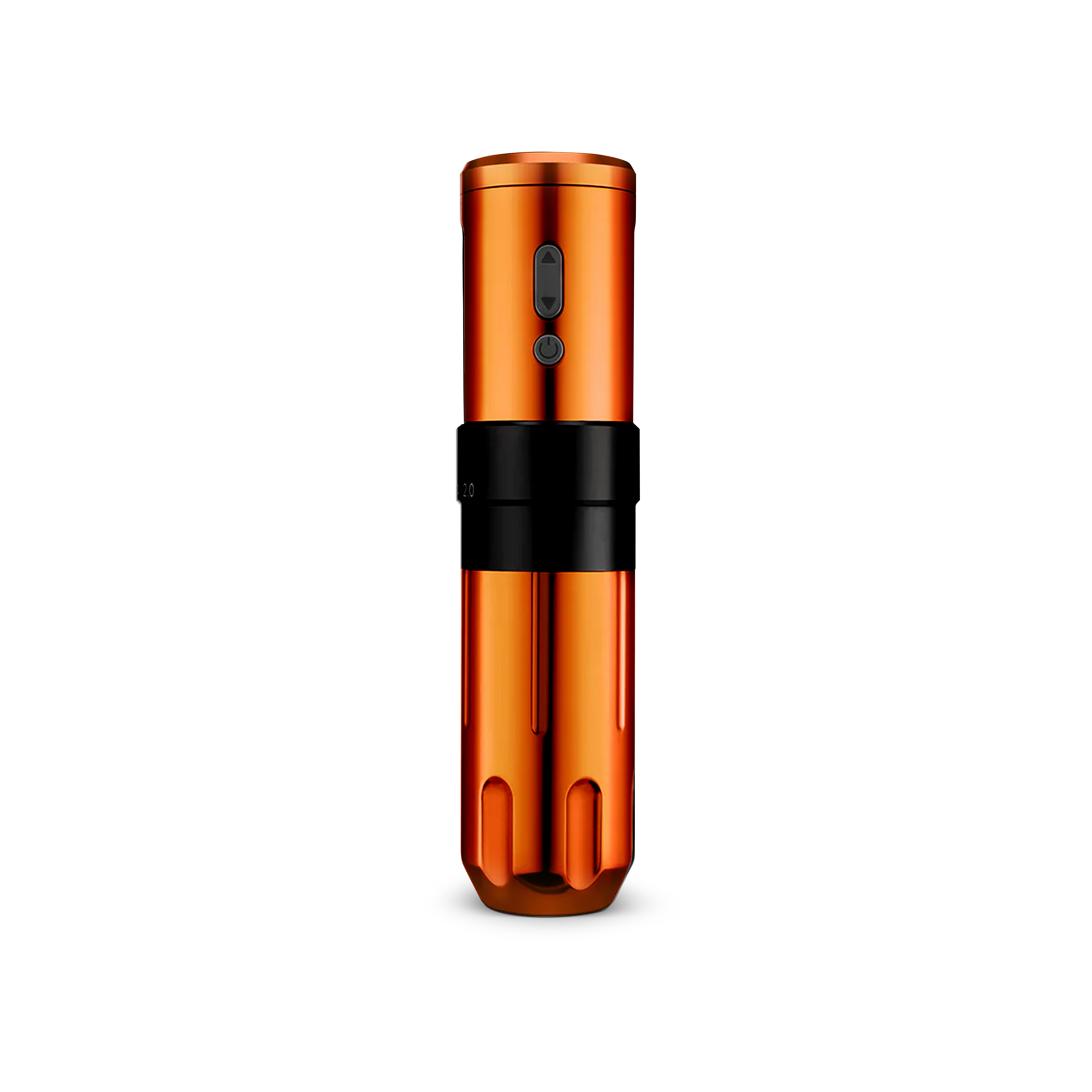

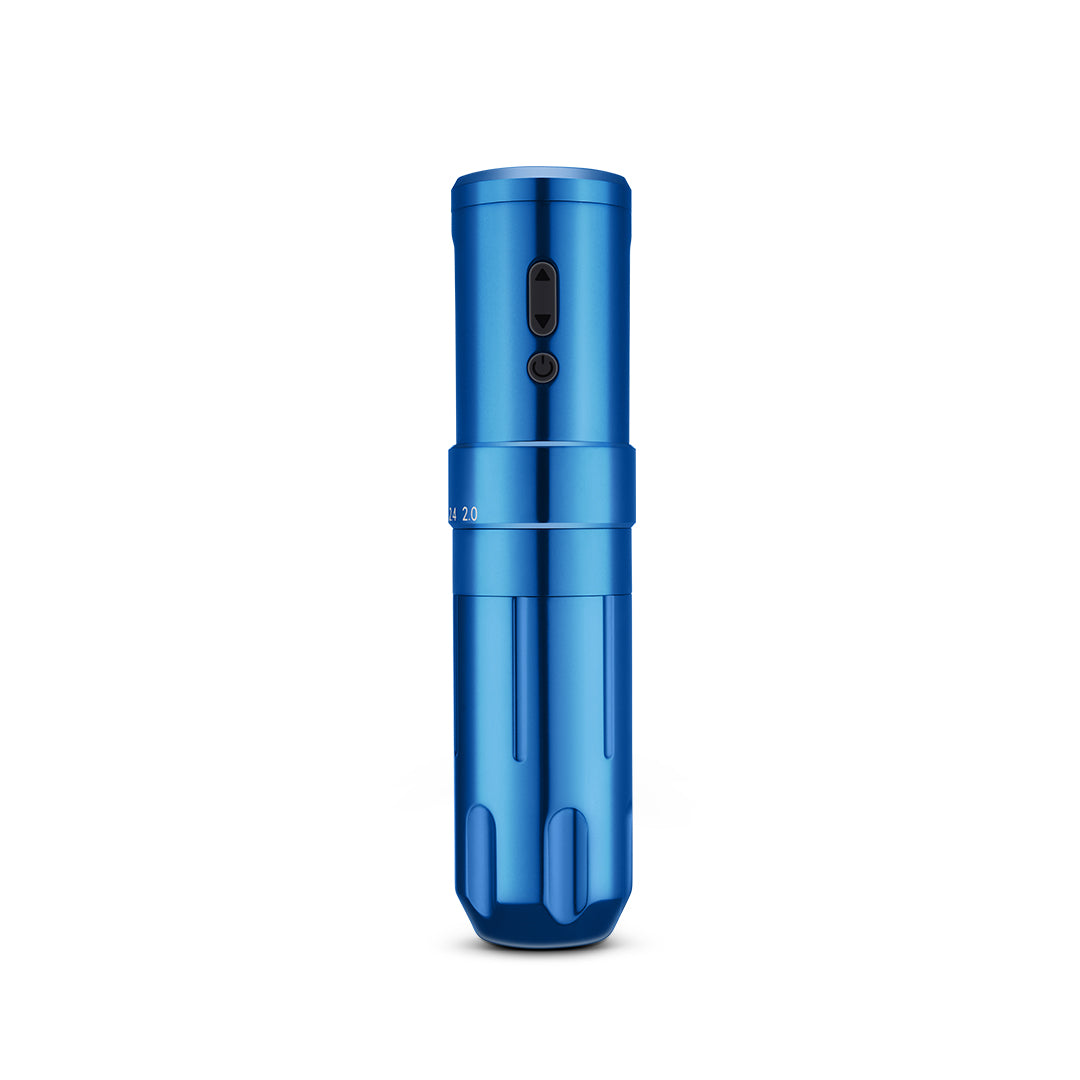

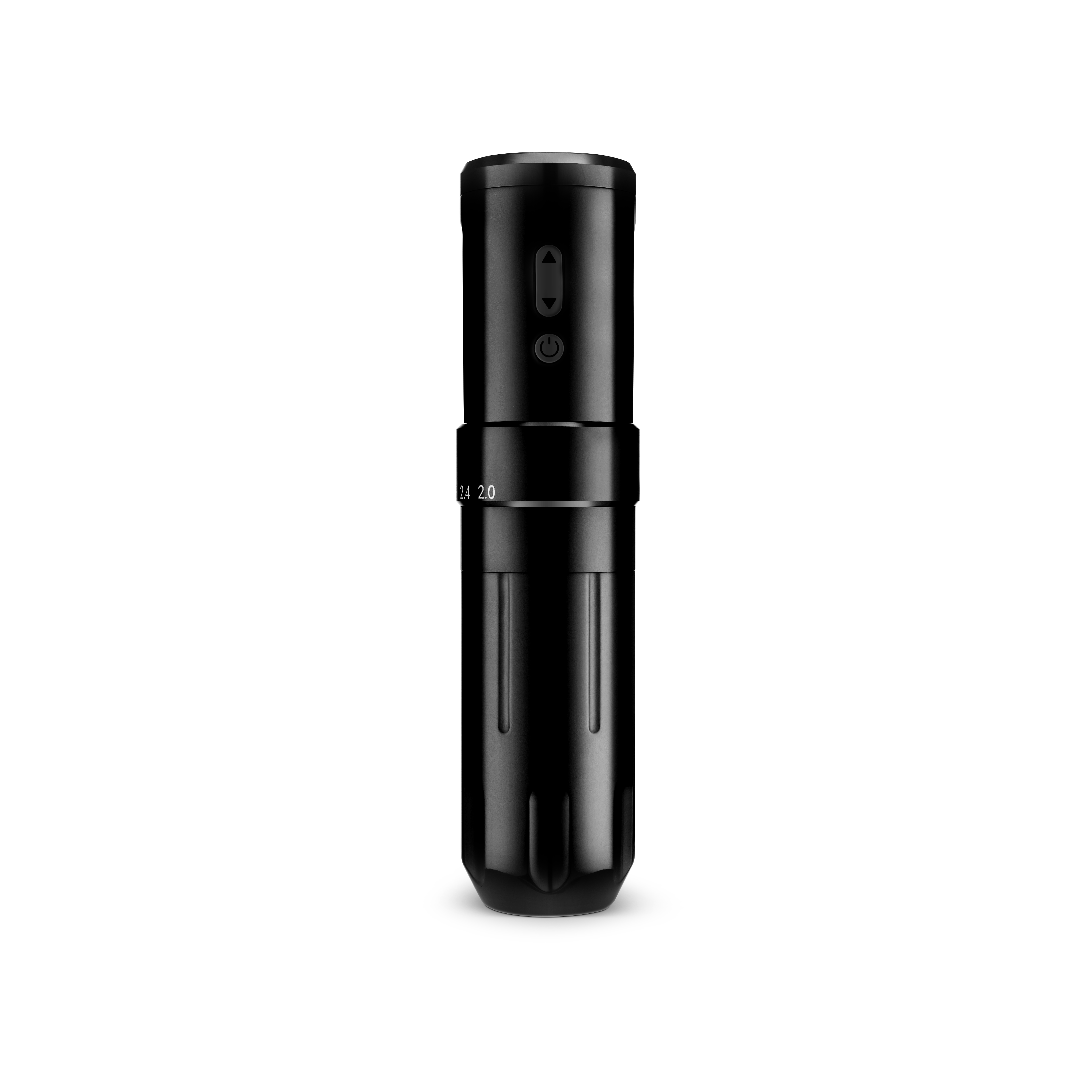

The Genie Wireless Tattoo Machine is a game-changer for tattoo artists seeking unmatched precision, versatility, and freedom. Designed with cutting-edge technology, this pen-style machine features a detachable battery, allowing for seamless wireless operation.
Adjusting Stroke Length
The machine has 7 stroke options, which can be adjusted using the central ring:
-
Twist the upper ring to the right and the lower ring to the left to increase stroke length.
-
Twist in the opposite direction to decrease stroke length.
Stroke Length Guide:
-
2.0mm / 2.4mm / 2.8mm – Best for gentle shading and working on sensitive areas.
-
3.2mm / 3.6mm – A balanced option for both lining and shading.
-
4.0mm / 4.2mm – Great for bold lines and solid color packing.
This easy-to-use system lets artists adjust settings quickly to match their tattooing style.
Adjusting Needle Depth:
To change the needle depth, hold the machine body and battery, then turn the grip.
-
Turn clockwise to increase depth (more needle hang).
-
Turn counterclockwise to decrease depth (less needle hang).
Each turn has a clicking mechanism that adjusts the depth by 0.2mm, ensuring precise control without accidental movement.
Control Menu
Power On/Off
-
Press and hold the power button for 2 seconds to turn the machine on or off.
- If inactive for 10 minutes, it will automatically shut down.
-
Press the power button twice to switch between modes.
-
Short press to start or stop the machine.
Mode Adjustment
-
Press the power button twice (while paused) to switch between:
-
M1 Mode – The needle moves continuously like a standard machine.
-
P Mode – The needle pricks quickly with adjustable speed and force, ideal for hair strokes and misty eyebrows.
-
Press “+” or “-” (while paused) to change intensity:
-
Strong Mode – Maximum power
-
Stable Mode – Balanced performance
-
Soft Mode – Gentle operation
Battery & Power Display
- The power indicator has 4 bars:
- Each bar represents 25% battery.
- When less than 5%, the last bar flashes as a warning.
Timer Function
- The machine tracks usage time in minutes.
-
Resets when turned off.
- Maximum display: 99 minutes, 59 seconds.
- The timer pauses when the machine stops and continues when restarted.
Battery & Power Connection
Detaching the Battery
- Hold the machine body and grip firmly.
-
Turn the battery counterclockwise to remove it.
- To reattach, push in and twist clockwise until it locks securely.
- Ensure the locking mechanism moves freely and the power leads align properly.
-
Avoid touching battery leads while charging or servicing.
Power Supply Options
- Once the battery is removed, you can use the RCA connector for a wired power supply.
- The machine supports Type-C charging and works with most Type-C cables (use the included cable for best results).
Machine Design & Materials
Grip
- The 38.5mm grip is designed for a secure hold and precise needle depth control.
- Made from 6061-T6 aircraft-grade aluminum, it is durable and lightweight.
- It can be steam sterilized, autoclaved, or sanitized with cold disinfectants.
Machine Body
- Constructed from solid aircraft-grade aluminum for stability and powerful performance.
- Features an adjustable stroke system with a ratcheted mechanism for easy adjustments.
-
Sanitize by wiping with cold sterilization solutions—avoid getting fluids inside the machine.
